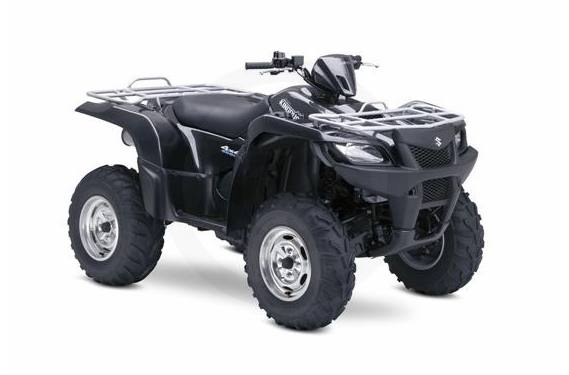

2009 Suzuki KingQuad 450AXi Limited
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Black Brush
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine Features
    • SCEM (Suzuki Composite Electrochemical Material) cylinder allows for improved heat transfer, lightweight and tighter piston clearance
    • Powerful 454cc, SOHC, single-cylinder, liquid-cooled engine designed for a wide powerband and strong performance
    • Uses a cylinder canted forward for lower center of gravity, reduced engine height and lower seat height
    • Compact 4-valve cylinder head with large intake valves and straight intake ports for increased cylinder charging efficiency
    • Sportbike-derived chain-and-gear camshaft drive system allows a short/narrow cylinder head design and reduced overall engine height
    • Plasma Spray Coating (SPSC) cylinders allows lightweight cylinder construction resistance to heat and friction
    • Suzuki fuel injection system featuring high-performance motorcycle technology provides excellent throttle response, fuel efficiency and quick engine starts under all operating conditions
    • QuadMatic: CVT-type automatic transmission designed for maximum versatility and convenience : fender-mounted gate-type shifter operation for high/low forward ranges, plus neutral and reverse
    • Advanced engine brake system minimizes free-wheeling to reduce downhill speed
    • Electric 2WD, 4WD and differential-lock 4WD - convenient handlebar-mounted push-button controls allow the rider to easily select the right setting for any traction condition
    • Compact torque-sensing limited-slip front differential offers more powerful traction plus light steering effort, including a differential-lock system that provides serious four-wheel-drive traction.
    • High capacity aluminum radiator with large diameter cooling fan for stable engine operating temperature
    Chassis Features
    • Independent double A-arm front suspension with 7.1 inches of wheel travel – includes large diameter shock absorbers with 5-way spring preload adjustment
    • Fully independent, I-beam rear suspension with long suspension travel (7.9 inches) – includes 5-way preload adjustable shock absorbers and large diameter rear stabilizer sway-bar
    • Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts
    • Sealed, multi-plate rear brake system – clutch-type design provides high durability, reduced unsprung weight and low-maintenance
    • 25-inch Maxxis tires mounted on lightweight aluminum-alloy wheels
    • Full floorboards with aggressively serrated footpegs and mud drain holes
    Utility/Convenience Features
    • Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light
    • High output magneto generator system and large 18-amp maintenance-free battery provides extra power
    • Large 4.6 gallon fuel tank positioned for a low center-of-gravity – includes vacuum-operated petcock, ratchet-style fuel cap and bar-type fuel gauge
    • Rugged steel-tube racks with wrinkle paint finish for increased durability and scratch resistance
    • Large 2.8 liter water resistant front storage compartment – includes new easy-to-open/close screw-on cap
    Specifications
    • Engine: 4-stroke, liquid-cooled, OHC
    • Bore Stroke: 84.0 mm (3.307 in) x 82.0 mm (3.228 in)
    • Compression Ratio: 10.0 : 1
    • Fuel System: Fuel injection
    • Lubrication: Wet sump
    • Ignition: Electronic ignition (CDI)
    • Transmission: Automatic variable ratio (V-belt), with high-/low-range, and reverse
    • Final Drive: Shaft drive
    • Overall Length: 2115 mm (83.3 in)
    • Overall Width: 1210 mm (47.6 in)
    • Overall Height: 1215 mm (47.8 in)
    • Seat Height: 860 mm (33.9 in)
    • Ground Clearance: 260 mm (10.2 in)
    • Wheelbase: 1280 mm (50.4 in)
    • Curb Weight: 305 kg (672 lbs)
    • Suspension Front: Independent, double wishbone, coil spring, oil damped
    • Suspension Rear: Independent, double wishbone, coil spring, oil damped
    • Brakes Front: Disc brake, twin
    • Brakes Rear: Sealed oil-bathed multi-disc
    • Tires Front: AT25 × 8-12, tubeless
    • Tires Rear: AT25 × 10-12, tubeless
    • Fuel Tank Capacity: 17.5 L (4.6/3.8 US/Imp gal)
    • Color: Black Brush

    Specifications

    Engine
    Engine Type 4-stroke, SOHC 4-valve
    Displacement 454 cc
    Bore x Stroke 84.0 x 82.0 mm (3.307 x 3.228 in.)
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Fuel injection
    Starting System Electronic ignition (CDI)
    Chassis
    Front Suspension Independent, double wishbone, coil spring, oil damped
    Front Travel 7.1 in.
    Front Brake Type Disc brake, twin
    Front Tires AT25 × 8-12, tubeless
    Rear Suspension Independent, double wishbone, coil spring, oil damped
    Rear Travel 7.9 in.
    Rear Brake Type Sealed oil-bathed multi-disc
    Rear Tires AT25 × 10-12, tubeless
    Dimensions/Capacities
    Dry Weight Curb Weight: 672 lbs (305 kg)
    Fuel Capacity 4.6 gal (17.5 l)
    Ground Clearance 10.2 in. (260 mm)
    Machine Dimensions (LxWxH) 83.3 x 47.6 x 47.8 in. (2115 x 1210 x 1215 mm)
    Wheelbase 50.4 in. (1280 mm)
    Drive Train
    Final Drive Shaft drive
    Transmission Automatic variable ratio (V-belt), with high-/low-range, and reverse
    General
    Lighting 30W multi-reflector halogen headlights, compact 5/21W tail light and brake light
    Colors Black Brush
    Warranty 12 month limited warranty

    Compare Models

    		 Print








    Year 2009
    Manufacturer Suzuki
    Model KingQuad 450AXi Limited
    Style Utility
    Chassis
    Front Suspension Independent, double wishbone, coil spring, oil damped
    Front Travel 7.1 in.
    Front Brake Type Disc brake, twin
    Front Tires AT25 × 8-12, tubeless
    Rear Suspension Independent, double wishbone, coil spring, oil damped
    Rear Travel 7.9 in.
    Rear Brake Type Sealed oil-bathed multi-disc
    Rear Tires AT25 × 10-12, tubeless
    Frame
    Dimensions/Capacities
    Dry Weight Curb Weight: 672 lbs (305 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 4.6 gal (17.5 l)
    Ground Clearance 10.2 in. (260 mm)
    Machine Dimensions (LxWxH) 83.3 x 47.6 x 47.8 in. (2115 x 1210 x 1215 mm)
    Wheelbase 50.4 in. (1280 mm)
    Drive Train
    Drive Train
    Final Drive Shaft drive
    Transmission Automatic variable ratio (V-belt), with high-/low-range, and reverse
    Engine
    Engine Type 4-stroke, SOHC 4-valve
    Displacement 454 cc
    Bore x Stroke 84.0 x 82.0 mm (3.307 x 3.228 in.)
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Fuel injection
    Starting System Electronic ignition (CDI)
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting 30W multi-reflector halogen headlights, compact 5/21W tail light and brake light
    Colors Black Brush
    Warranty 12 month limited warranty
