Showcase Home » Kawasaki » KLX250S
Model Quick Search

$5,799.00

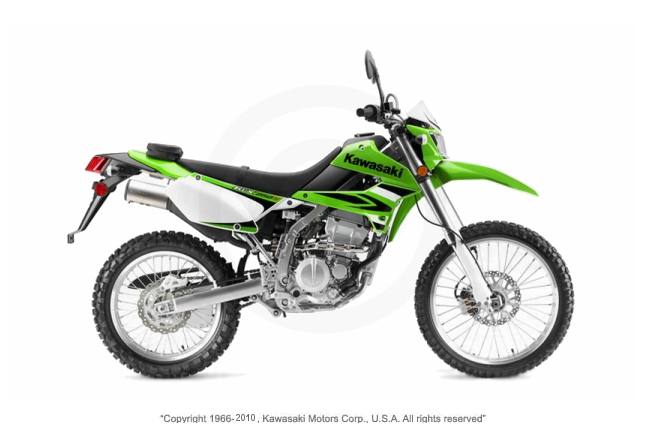

2009 Kawasaki KLX250S
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    ENGINE
    • Type: 4-stroke, Single
    • Starting: Electric
    • Displacement: 249 cc
    • Bore & Stroke: 72.0 x 61.2 mm
    • Compression Ratio: 11.0:1
    • Valve system: DOHC, 4 valves, shim under bucket actuation
    • Carburetor: Keihin CVK34
    • Ignition: Digital DC-CDI
    • Cooling: Liquid, twin radiators
    • Lubrication: Forced lubrication, Semi-dry sump
    DRIVETRAIN
    • Final drive: Chain
    • Transmission: 6-speed, return
    • Primary drive: Gear
    • Primary reduction ratio: 2.800 (84/30)
    • Gear ratios: 1st: 3.000 (30/10)
    • Gear Ratios: 2nd: 2.000 (30/15)
    • Gear Ratios: 3rd: 1.500 (27/18)
    • Gear Ratios: 4th: 1.250 (25/20)
    • Gear Ratios: 5th: 1.050 (21/20)
    • Gear Ratios: 6th: 0.952 (20/21)
    • Final reduction ratio: 3.000 (42/14)
    • Clutch: Wet multi-disc, manual, cable operation
    FRAME
    • Wheel travel: Rear: 230 mm
    • Type: Perimeter High-tensile steel
    • Wheel travel: Front: 260 mm
    • Tires: Front: 3.00-21 (51P)
    • Tires: Rear: 4.60-18 (63P)
    • Caster (rake): 27.5°
    • Trail: 110 mm
    • Steering angle (L/R): 41° / 41°
    SUSPENSION
    • Suspension, front: 43 mm upside-down, cartridge-type, 16-click compression and 16-click rebound damping
    • Suspension, rear: Uni-Trak with fully adjustable spring preload, 16-click compression damping, 16-click rebound damping
    BRAKES
    • Rear: Type: 240 mm petal disc
    • Front: Type: 250 mm semi-floating petal disc
    • Front: Caliper: Dual-piston
    • Rear: Caliper: Single-piston
    DIMENSIONS
    • Overall length: 2,222 mm
    • Overall width: 815 mm
    • Overall height: 1,195 mm
    • Wheelbase: 1,440 mm
    • Ground Clearance: 280 mm
    • Seat height: 885 mm
    • Dry weight: 119 kg
    • Fuel capacity: 7 litres
    DETAILS
    • Colours: Lime Green, Sunbeam Red
    • Warranty: 12 months
    • GTPP available: 24 or 36 months (Kawasaki GTPP coverage begins after the standard limited warranty expires)

    Specifications

    Engine
    Engine Type 4-stroke, Single, DOHC, 4 valves, shim under bucket actuation
    Displacement 249 cc
    Bore and Stroke 72.0 x 61.2 mm
    Cooling Liquid, twin radiators
    Compression Ratio 11.0:1
    Fuel System Keihin CVK34
    Ignition Digital DC-CDI
    Chassis
    Front Suspension 43 mm upside-down, cartridge-type, 16-click compression and 16-click rebound damping, 230 mm Travel
    Front Brakes 240 mm petal disc, 250 mm semi-floating petal disc
    Front Tire 3.00-21 (51P)
    Rear Suspension Uni-Trak with fully adjustable spring preload, 16-click compression damping, 16-click rebound damping, 260 mm
    Rear Brakes Dual-piston, Single-piston
    Rear Tire 4.60-18 (63P)
    Dimensions
    Dry Weight 119 kg
    Fuel Capacity 7 l
    Wheelbase 1,440 mm
    Seat Height 885 mm
    Trail 110 mm
    Rake 27.5°
    Transmission
    Transmission Transmission: 6-speed, return; Primary drive: Gear
    Final Drive Chain
    General
    Colors Lime Green, Sunbeam Red
    Warranty 12 months

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kawasaki
    Model KLX250S
    Style Dual Purpose
    MSRP* $5,799.00
    Chassis
    Front Suspension 43 mm upside-down, cartridge-type, 16-click compression and 16-click rebound damping, 230 mm Travel
    Front Brakes 240 mm petal disc, 250 mm semi-floating petal disc
    Front Tire 3.00-21 (51P)
    Rear Suspension Uni-Trak with fully adjustable spring preload, 16-click compression damping, 16-click rebound damping, 260 mm
    Rear Brakes Dual-piston, Single-piston
    Rear Tire 4.60-18 (63P)
    Dimensions
    Dry Weight 119 kg
    Fuel Capacity 7 l
    Wheelbase 1,440 mm
    MPG
    Seat Height 885 mm
    Trail 110 mm
    Rake 27.5°
    Engine
    Engine Type 4-stroke, Single, DOHC, 4 valves, shim under bucket actuation
    Displacement 249 cc
    Bore and Stroke 72.0 x 61.2 mm
    Cooling Liquid, twin radiators
    Compression Ratio 11.0:1
    Fuel System Keihin CVK34
    Ignition Digital DC-CDI
    General
    Speedometer
    Tachometer
    Odometer
    Colors Lime Green, Sunbeam Red
    Warranty 12 months
    Transmission
    Transmission Transmission: 6-speed, return; Primary drive: Gear
    Final Drive Chain
